Nruab nrab ntau laser weld nrhiav sensor
● Qhov nruab nrab nyob deb series yog compact laser sensor thiab txhawb software system tsim rau cov yam ntxwv ntawm workpieces loj, ntau yam cuam tshuam, thiab loj grooves nyob rau hauv MIG vuam txheej txheem.
● Siv nyob rau hauv vuam positioning thiab real-time taug qab.
● Loj ua haujlwm nrug thiab ntim me me.
● Kev tiv thaiv qib siab thiab kev vuam raug siab.
● TD hais txog qhov nqaim ntawm cov qauv saib
● Qhov kev soj ntsuam zoo tshaj plaws yog li 210mm
● Ntau qhov tsim nyog rau cov phom ntev vuam taub hau
|
Hom |
FV-240-TSI |
|
Ntim |
91 * 73 * 41mm |
|
Optimal kev soj ntsuam nrug |
210 hli |
|
Qhov tob tob |
200-300 hli |
|
Longitudinal daws teeb meem |
0 1-0.16mm |
|
Paub qhov siab yam tsawg kawg nkaus |
0.8 hli |
|
Teb txoj kab uas hla |
47-103 hli |
|
Lateral daws teeb meem |
0 03-0.04mm |
|
Paub qhov dav yam tsawg kawg nkaus |
0.5 hli |
|
Kev kuaj xyuas zaus |
Standard 30hz |
|
Ua haujlwm voltage |
9-36V |
Daim ntawv thov

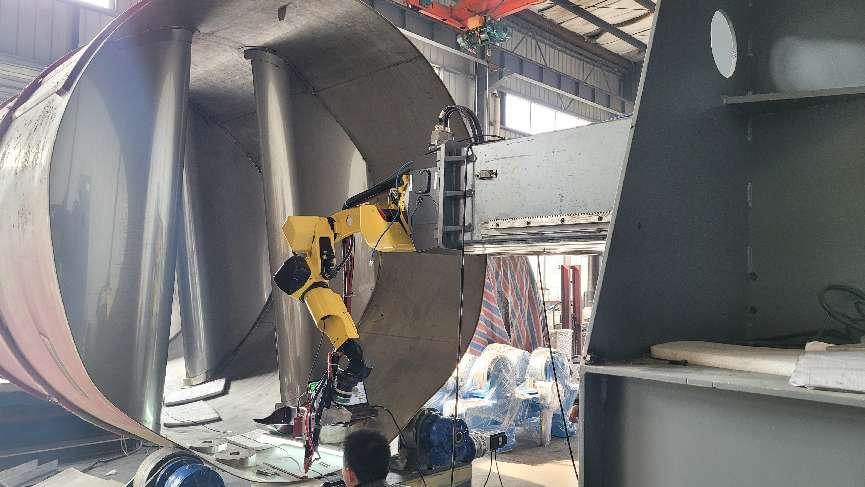

Lub Full-v FV-240 sensor txhawb ntau yam txheej txheem vuam, suav nrog MIG (CO2 gas shielded welding), laser vuam, laser sib txuas vuam, kev sib txhuam do vuam, plasma vuam, thiab lwm yam. Txawm li cas los xij ntawm cov txheej txheem vuam, peb tuaj yeem muab txhim khu kev qha kev txhawb nqa thiab ruaj khov kev ua tau zoo los xyuas kom meej cov txiaj ntsig zoo hauv qhov sib txawv vuam scenarios.
Lub hauv paus ntsiab lus ua haujlwm
Lub laser seam nrhiav sensor siv lub laser irradiate ntawm qhov chaw ntawm lub vuam seam los tsim ib lub teeb laser band, uas tau txais thiab duab los ntawm lub koob yees duab siab. Los ntawm kev ua algorithmic, peb-dimensional nta ntawm weld seam yog hloov mus rau hauv cov ntaub ntawv tsim, nrog rau kev sib koom ua ke ntawm kev sib koom ua ke, misalignment, qhov khoob, thiab lwm yam. Cov ntaub ntawv no raug xa mus rau tus neeg hlau maub los, muab cov neeg hlau nrog cov kev xav tau thiab cov txheej txheem tsis zoo rau welding, coj tus neeg hlau mus rau vuam lossis kho qhov sib txawv ntawm qhov sib txawv ntawm lub sijhawm, thiab ua tiav cov haujlwm vuam zoo meej. Piv nrog rau lwm cov kev daws teeb meem, laser seam taug qab muaj qhov zoo ntawm kev tsis sib cuag, qhov tseeb siab, ceev ceev, thiab zoo adaptability.
Txog Full-v
Suzhou Full-v tau tsim muaj nyob rau hauv 2019 thiab tau ua haujlwm ntau txhiab tus neeg siv hauv tsev thiab txawv teb chaws, tau txais kev lees paub los ntawm cov neeg siv. Lub Full-v 3D laser ntse weld seam taug qab qhov system tau ua tiav qhov kev pabcuam tag nrho ntawm cov neeg hlau tseem ceeb ntawm cov tuam txhab tsim khoom hauv tebchaws thiab thoob ntiaj teb, thiab muaj cov yam ntxwv ntawm kev yooj yim, kev ntseeg tau, thiab kev siv dav. Lub tuam txhab tau cog lus los muab qhib thiab kho cov khoom siv optoelectronic sensor thiab cov kev pabcuam, ib txwm saib xyuas cov khoom zoo thiab cov neeg siv kev paub. Nrog tus ntsuj plig ntawm kev txhim kho tas li raws li tus kws tsim khoom siv tes ua, peb muab cov neeg siv khoom txhim khu kev qha thiab ruaj khov.
Full-v tsim · Yeej Yav Tom Ntej
FAQ
Q: Puas yog cov tuam txhab lag luam uas tsis tau siv laser sensors yooj yim pib siv cov cuab yeej no?
Q: Puas yog txhua tus qauv ntawm cov sensors siv taug qab thiab nrhiav txoj haujlwm ua haujlwm?
Q: Puas yog siv lub laser sensor tiag tiag tsis programming thiab qhia dawb?
Q: Puas yog nws tsis siv qhov hloov pauv uas los nrog Full-v?
Q: Peb puas tuaj yeem tau txais qee qhov qauv? Puas muaj nqi?
Q: Peb tuaj yeem tau txais cov lus hais li cas?
Q: Kuv puas tuaj yeem muaj cov qauv tshiab nrog kuv tus qauv tsim rau kev pom zoo?
Q: Koj puas tuaj yeem pab tus tsim?
